Directly matched to Sonmicro 13.56 MHz RFID Mifare® modules

Dimensions: 15 x 20mm (approximately 0.59 x 0.79 inches)

Thickness: 1.6cm (approximately 0.63 inches)

Customizable connector options

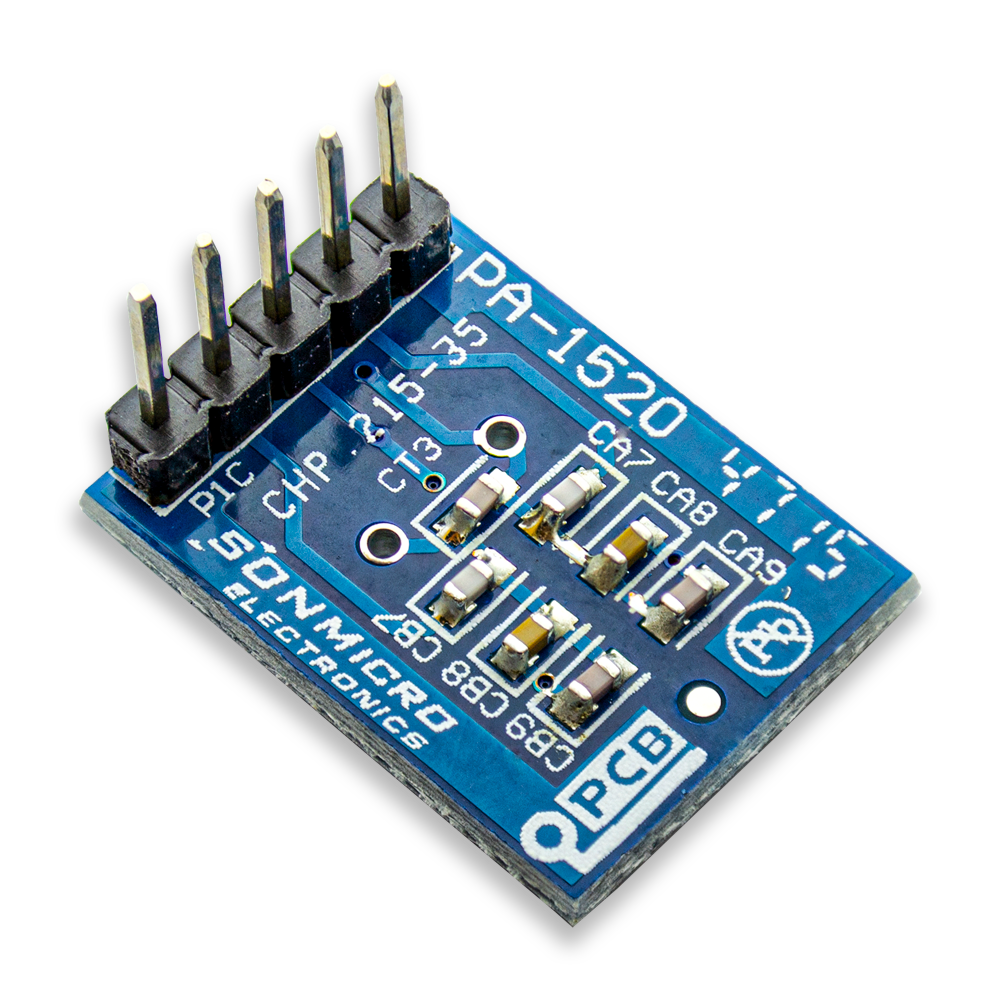

13.56 MHz RFID Antenna 15x20mm: PA1520

The PA1520 is a directly matched printed circuit board (PCB) antenna designed for use with Sonmicro 13.56 MHz RFID Mifare® modules.

Ultra Compact Form Factor

Offering an ultra-compact form factor, the PA1520 measures only 15 x 20 mm (approximately 0.59 x 0.79 inches), making it ideal for applications where space is limited and low-read range is acceptable.

It is compatible with the SM5211-SMD, SM5212-uSMD, and SM5210-MINI modules, offering a typical read range of 1.5 cm (±0.5 cm) or approximately 0.6 inches (± 0.2 inches). The actual range may vary based on tag type, tag size, and environmental conditions.

Note: The PA1520 is a directly matched antenna for Sonmicro 13.56 MHz RFID modules and is not guaranteed to work with third-party RFID readers.

Connector Option:

The PA1520 features a 5-pin standard header connector with a 2.54mm pitch, ensuring compatibility with standard pin sockets for easy plug-and-play installation. Optionally, the antenna is available without pins to accommodate custom soldering or connector installation.

Customization Options

We offer customization services for printed circuit board (PCB) antennas to meet specific project requirements. Whether you need a different connector, dimensions, matching to your third-party RFID reader, or other customizations, we can tailor the antenna to your needs. Contact us to discuss your project requirements.
